Stepper Motors


This is the AQA version closing after June 2019. Visit the the version for Eduqas instead.

To gain access to revision questions, please sign up and log in.

A2

Stepper Motors

Motor-Stepper.jpg   7.5o steps     3.75o steps

For more precise control, a stepper motor is needed. These are used when accurate position control is needed. Examples include robotic movement control, printer head movement control and disk drive head positioning.

Unipolar Stepper Motor - Five or Six Connections

Connection 1 and 2 are sometimes joined together inside the motor.

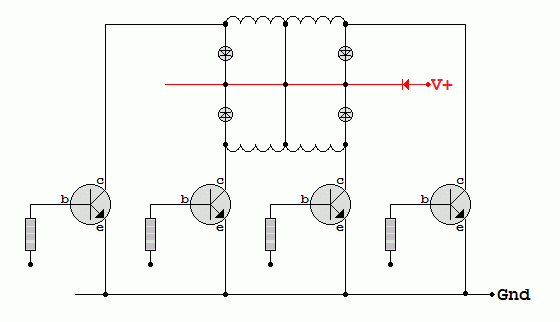

Driver Circuit

Unipolar Stepper Motor Driver

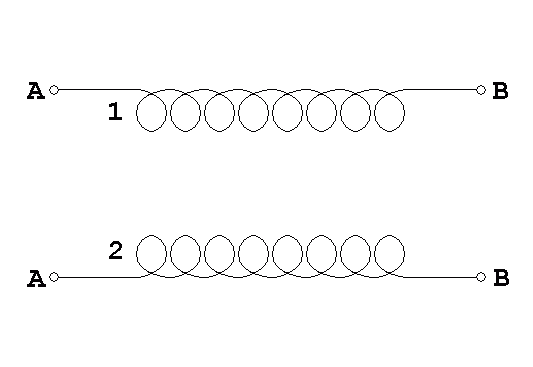

Bipolar Stepper Motors - Four Connections


To reverse the magnetic field in the coils, an H-Bridge circuit is used. This is more complex than the unipolar arrangement above.

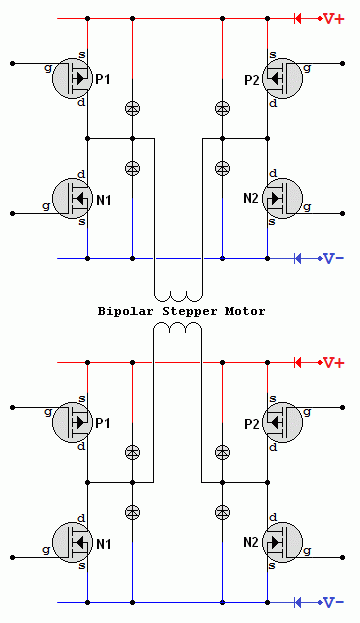

H-Bridge Drivers

This circuit is able to energise the stepper motor coils in either direction. Two H-Bridge circuits are used, one for each coil.

Stepper Motor Drivers

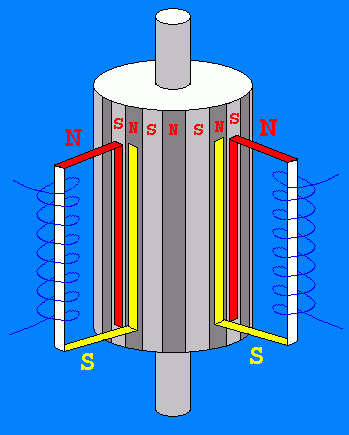

A Possible Physical Layout

Here is an approximation of one possible physical layout for a stepper motor. Only two of the eight coils are shown.
