Multimeters


This is the AQA version closing after June 2019. Visit the the version for Eduqas instead.

To gain access to revision questions, please sign up and log in.

Everyone

Measuring Voltage

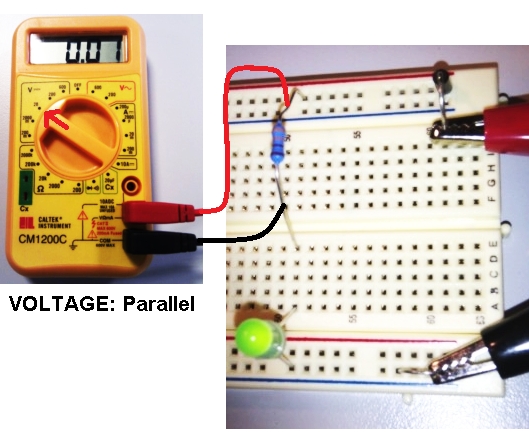

Connect the meter in parallel with the component to be measured.




Measuring Current

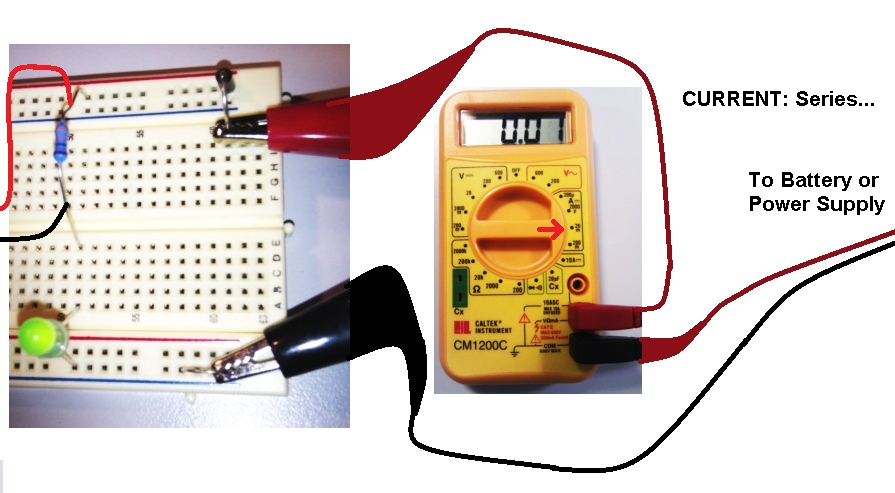

To measure current, the current must flow through the ammeter. SO YOU MOST CONNECT THE METRE IN SERIES or you will destroy the meter.




Measuring Resistance

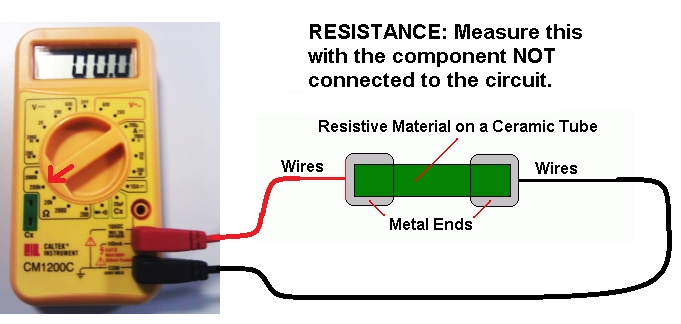

Remove the resistor before measuring it.
