Commonly Used Components

This is the AQA version closing after June 2019. Visit the the version for Eduqas instead .

To gain access to revision questions, please sign up and log in.

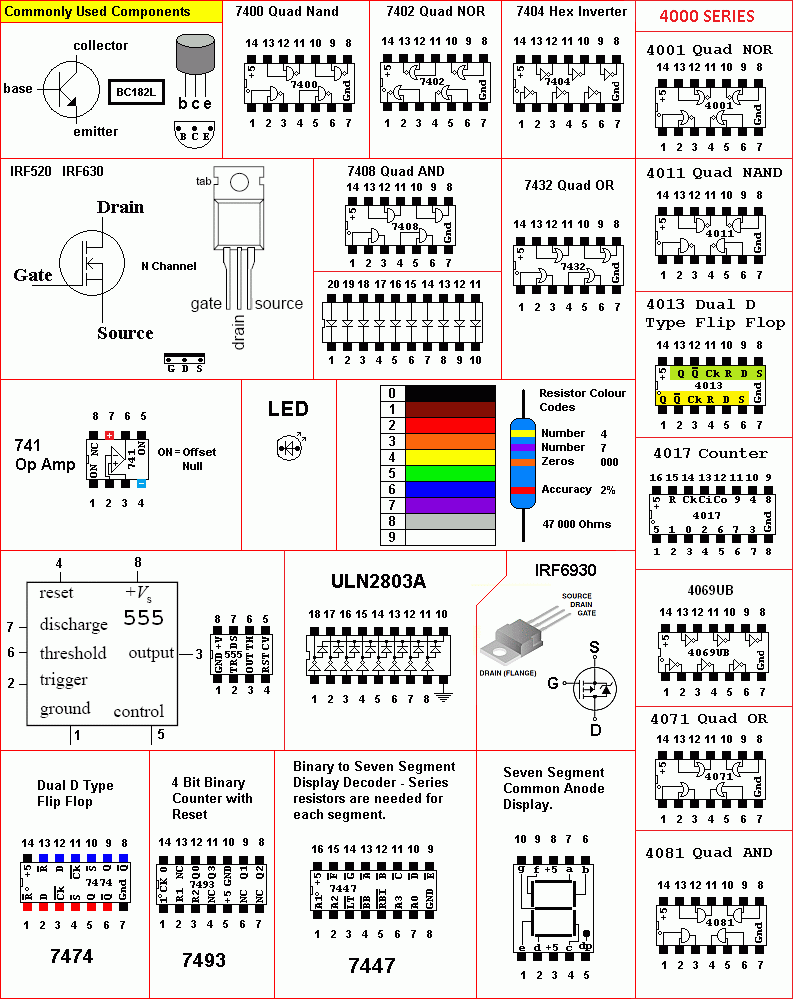

Pinouts and Symbols

Here is a collection of the most frequently used components including the

The BC182L bipolar transistor
74xxx series AND, OR, NAND, NOR and NOT Gates
IRF520 N Channel MOSFET
741 Op Amp
An LED diagram for pasting onto the layout boards below.
The 555 timer chip
IRF6930 P Channel MOSFET
74xxx series D-Type-Flip-Flop, 4 Bit counter and a BCD to Seven Segment Decoder.

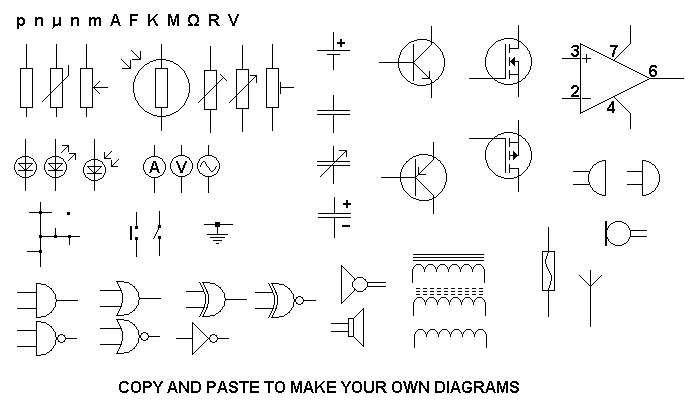

Components for Copy and Paste

Frequently Used Components

Most of these pinouts match the Prototype Board layout below.
This is convenient for copying and pasting your own diagrams.

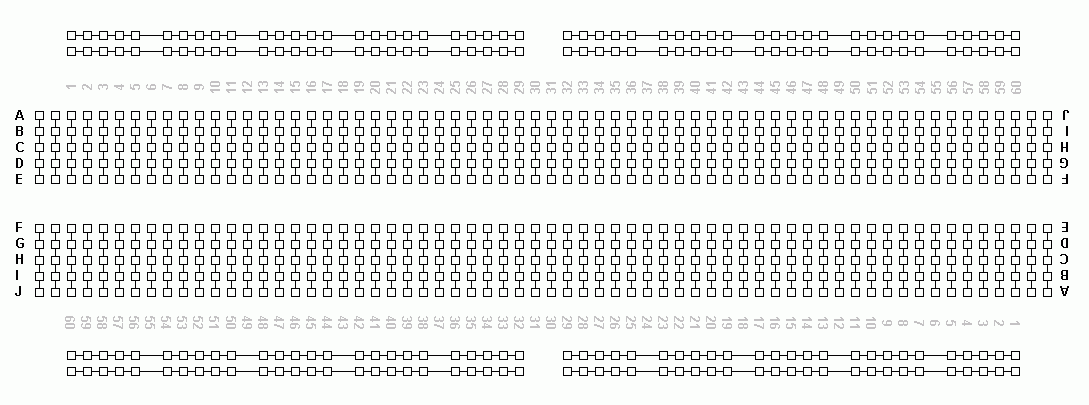

Prototype Board

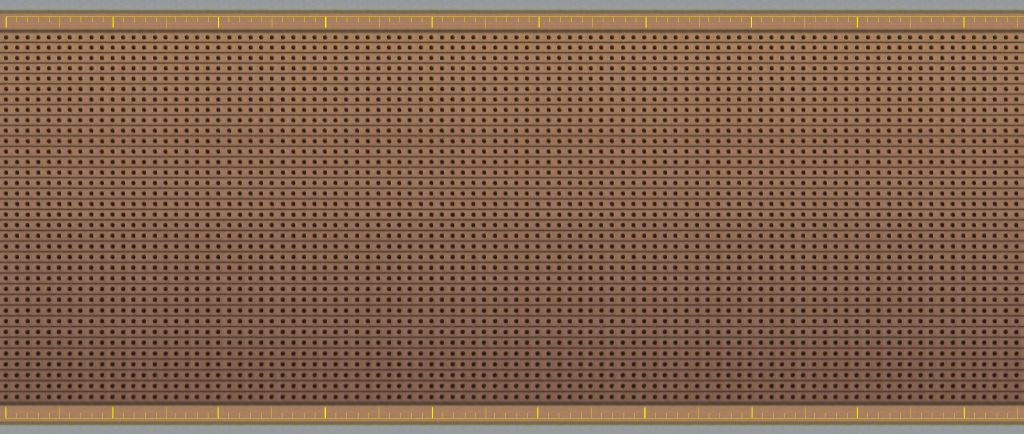

Strip Board
