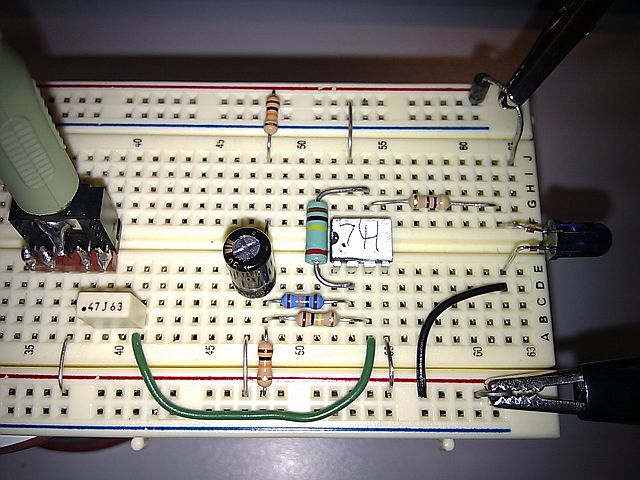

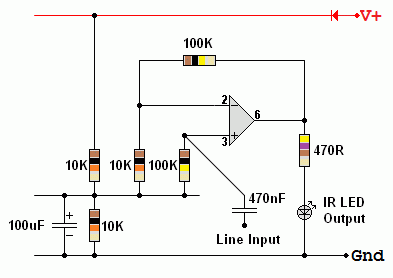

- With this transmitter the infra-red LED glows at constant brightness until there is an input signal. This is the carrier signal.
- The input information signal increases and decreases the brightness of the LED.
- This is amplitude modulation.
- The line input could be connected to a computer sound card, phone or any similar device.
- To drive a higher power LED, a source follower should be added after this amplifier, possibly with separate biasing.

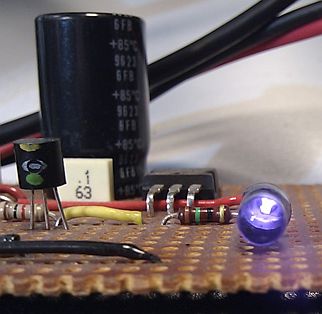

- You can find out if your IR LED is lit by viewing with a mobile phone camera.

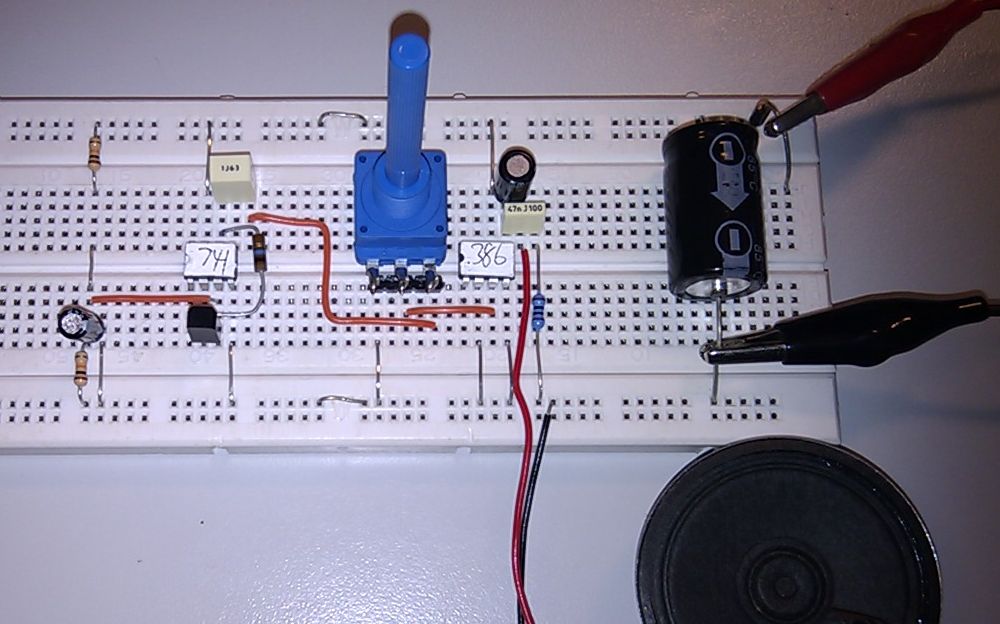

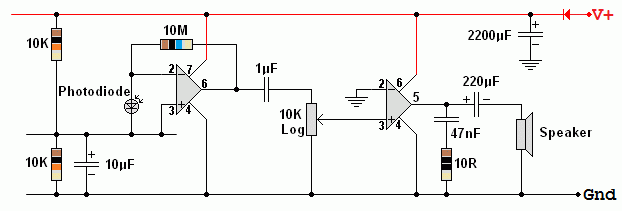

- The infrared detector is a "current to voltage converter".
The op amp inverting input (2) is a virtual earth ( held at +6 Volts by the two 10K resistors wired as a voltage divider ).
A BPW41 photodiode is used here.
- The output voltage alters to keep the pin 2 input voltage as close to 6 Volts as possible.
- The 10M feedback resistor is a compromise. A bigger resistance increases the sensitivity but also increases the background noise (hiss) produced by the circuit.
- A low noise CMOS FET op' amp' is preferred here but the 741 chip works well enough.
- The photodiode can be replaced with a phototransistor. Bright infrared light might make this circuit saturate.
- The 10M feedback resistor could be made variable if the sensitivity needed to be adjusted.
- The LM386 chip works on up to +12 Volts.
This circuit produced little noise or hiss as long as all the lights were turned off. The fluorescent lights were the worst for noise generation.
- In free space, these circuits have a rather short range.

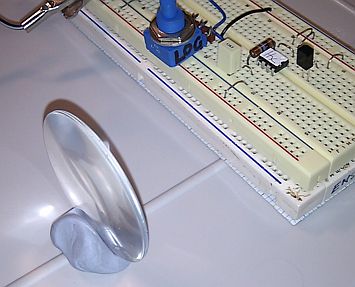

- Using lenses to focus the beams increases the range greatly.
- A visible LED can be used to set up the optics and then return to using infrared afterwards.
- Some types of optical fibre are good at channelling infrared.
- Using LASERs, the distance record is 24 000 000 km through interplanetary space. On land it's about 150 km.

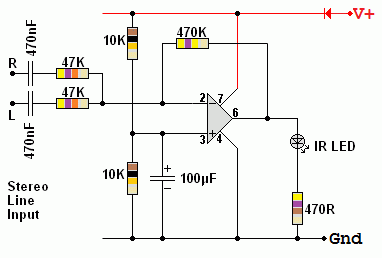

This uses a summing amplifier to combine the two stereo inputs into one monophonic infrared beam. The input resistance is 47kΩ which matches most audio line devices.
