Control systems often include negative feedback.
Negative feedback is a good thing. It corrects errors in the output.
Systems that include
negative feedback are called CLOSED LOOP.
Systems with no feedback are called OPEN LOOP.

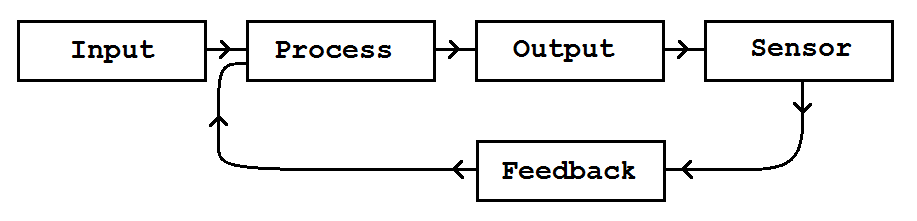

Input Process Output plus Feedback

More Detailed Example - Central Heating and Thermostst

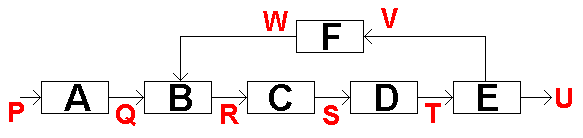

General Layout of a Control System

A - Input.
B - Error Detector. Compare wanted with actual temperature (analogue comparator or digital subtraction)
C - Processor decides what to do with the signal from B
D - Driver (to change the boiler settings and water pump state)
E - Room thermostat
F - Negative Feedback voltage or binary number

P - The user sets the input required room temperature
Q - A voltage or binary number representing the wanted temperature
R - Error signal representing the difference between the wanted and actual room temperature.
S - Control signal/s to the boiler for the gas burner and water pumping
T - Cool or warm air carries this signal from the heating system to the thermostat.
U - The room temperature as sensed by people.
V - A voltage or binary number representing the actual temperature
W - This could be identical to V or a scaled or processed version of V suitable to be fed to B.
