Non Inverting Op Amp

This is the AQA version closing after June 2019. Visit the the version for Eduqas instead .

To gain access to revision questions, please sign up and log in.

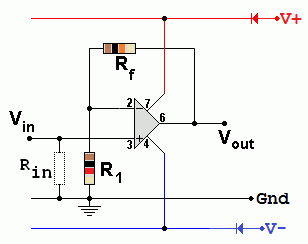

Rf provides negative feedback to control the gain. The gain depends on Rf and R1.

Op Amp Non Inverting.gif

Voltage Gain = 1 + Rf / R1
The input resistance is equal to that of the op-amp. (Infinity for an ideal op-amp).
The dotted resistor might be needed to hold the non inverting input, DC potential, at zero volts. This resistor can be large so it has little effect on the circuit input resistance (1 to 10MΩ).
The non-inverting amplifier has a very high input resistance (impedance). This makes it ideal for amplifying small signal voltages from devices that can not provide any significant current. Such devices include capacitor microphones and piezoelectric sensors.

For the Falstad Circuit Simulation, CTRL+Click Non Inverting Amplifier Gain = 5.7
In options, check European Resistors and uncheck Conventional Current.

Alternatively view Non_Inverting_Amplifier.txt.
Save or copy the text on the web page. Import the saved or copied text into the Falstad simulator.

Here is the new HTML5 Simulator Site.

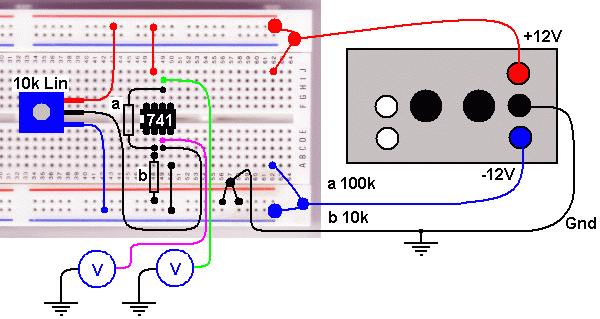

Gain Measurement

Use 22K for resistor "a".
Use 10K for resistor "b".
Measure V in and V out
Plot a graph with V out on the Y axis and V in on the X axis.
The gain is the gradient of the graph.
Watch out for limiting when the output gets close to the power supply voltage.

Op Amp Non Inverting Layout.gif

Parasitic Oscillation

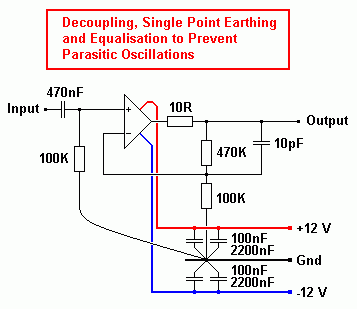

Parasitic oscillations are caused by unwanted positive feedback, usually at higher frequencies. Lack of decoupling, poor layout and stray capacitance and resistance on prototype boards are all possible causes. This circuit shows some techniques to minimise the risk of oscillation. The feedback capacitor restricts high frequency performance. Some experimentation might be needed to get the right value. In some cases, the circuit will never work if built onto prototype board. A soldered circuit with all component lead lengths minimised might be needed.
