Semiconductor Rectifier and PSU


Site for Eduqas/WJEC - Go to the AQA site.

  GCSE    Semiconductors  0 of 16    Question 268    Components
Score 0/0
Not attempted
Last Answer
Deadline not set1 of 16    Question 284    Components
Score 0/0
Not attempted
Last Answer
Deadline not set2 of 16    Question 251    Components
Score 0/0
Not attempted
Last Answer
Deadline not set3 of 16    Question 1422    Identify the Component
Score 0/0
Not attempted
Last Answer
Deadline not set4 of 16    Question 645    MOSFETS
Score 0/0
Not attempted
Last Answer
Deadline not set5 of 16    Question 647    MOSFETS
Score 0/0
Not attempted
Last Answer
Deadline not set6 of 16    Question 648    MOSFETS
Score 0/0
Not attempted
Last Answer
Deadline not set7 of 16    Question 649    MOSFETS
Score 0/0
Not attempted
Last Answer
Deadline not set8 of 16    Question 652    MOSFETS
Score 0/0
Not attempted
Last Answer
Deadline not set9 of 16    Question 329    MOSFETS (Ideal)
Score 0/0
Not attempted
Last Answer
Deadline not set10 of 16    Question 608    Saturation Voltages
Score 0/0
Not attempted
Last Answer
Deadline not set11 of 16    Question 601    Switching Speed
Score 0/0
Not attempted
Last Answer
Deadline not set12 of 16    Question 1294    Temperature Stability
Score 0/0
Not attempted
Last Answer
Deadline not set13 of 16    Question 604    Temperature Stability
Score 0/0
Not attempted
Last Answer
Deadline not set14 of 16    Question 605    Temperature Stability
Score 0/0
Not attempted
Last Answer
Deadline not set15 of 16    Question 1242    Temperature Stability
Score 0/0
Not attempted
Last Answer
Deadline not set16 of 16    Question 286    Transistors
Score 0/0
Not attempted
Last Answer
Deadline not set  Questions 0 to 16   -->  View All

Rectifier diodes convert AC into DC by passing current in one direction only.

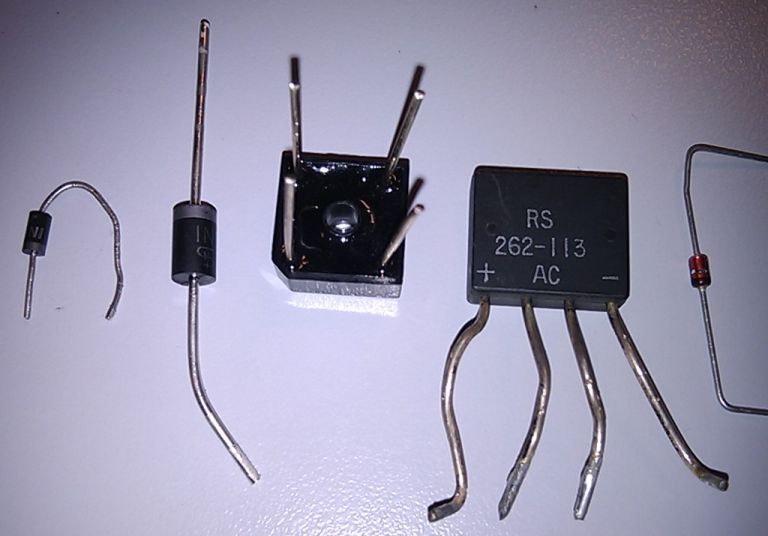

In the image below ...

Various Diodes

Most electronic circuits need low voltage direct current (DC).

To minimise energy loss in power lines, the power companies use high voltage alternating current (AC) for power distribution. This is because it's possible to step the voltage up or down using transformers. High voltage transmission is more efficient. Power supply circuits step the mains voltage down to a suitable value and produce direct current.

Here are some examples. The transformer steps the voltage down to a suitable low value. The diode/s only pass current in one direction so the AC is converted to DC. The capacitor stores charge and smooths out the raw DC. To get really good smoothing, electronic regulation is needed in addition to the capacitor used to store charge.

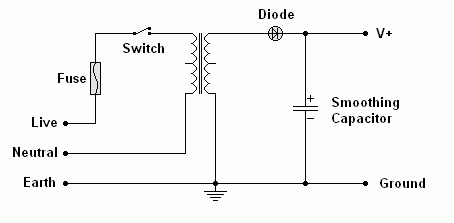

DC Power Supply with a Half Wave Rectifier

Power Supply - Half Wave Rectifier

Smoothing - Use a Big Capacitor

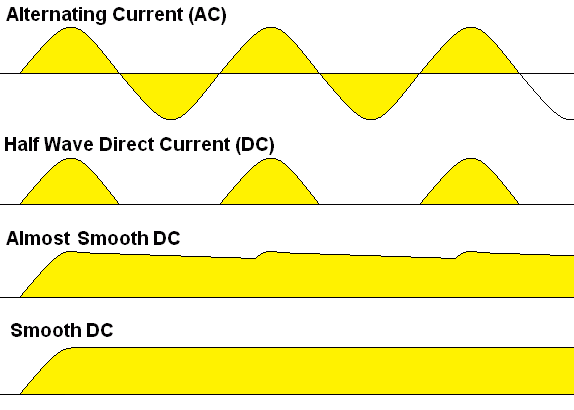

These sketches show ...

Power Supply Smoothing - Graphs
