Seven Segment Display |
|
To gain access to revision questions, please sign up and log in.

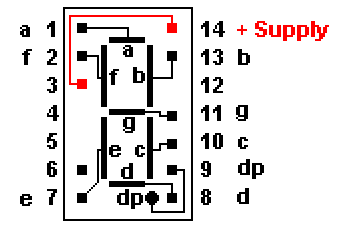

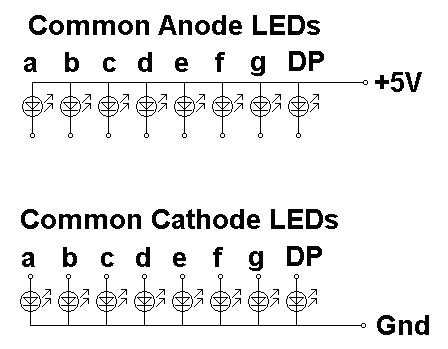

Design the binary and hexadecimal numbers needed to make all the digits between 0 and 9, using a Common Anode display.
Remember that a zero turns on the segment.
Num |
DP | A | B | C | D | E | F | G | HEX |
0 |
|||||||||
1 |
|||||||||
2 |
|||||||||
3 |
|||||||||
4 |
|||||||||
5 |
|||||||||
6 |
|||||||||
7 |
|||||||||
8 |
|||||||||
9 |
