ULN2803 Darlington Driver Chip

This is the AQA version closing after June 2019. Visit the the version for Eduqas instead .

To gain access to revision questions, please sign up and log in.

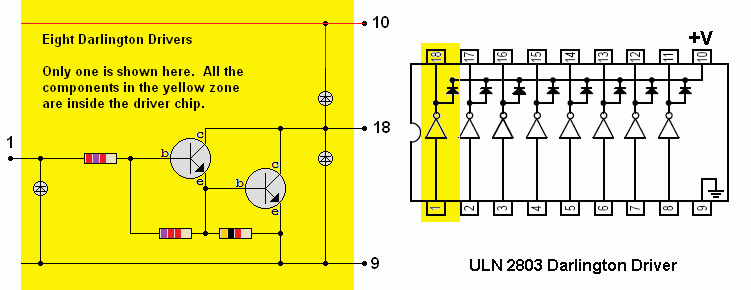

This eight channel chip allows low power output devices like microcontrollers to drive quite high current devices. It is only useful for switching.

The inputs are compatible with logic gate outputs and there is a built-in current limiting resistor. This makes the chip easier to use.
