4026 Counter


This is the AQA version closing after June 2019. Visit the the version for Eduqas instead.

To gain access to revision questions, please sign up and log in.

Non-Exam Extras

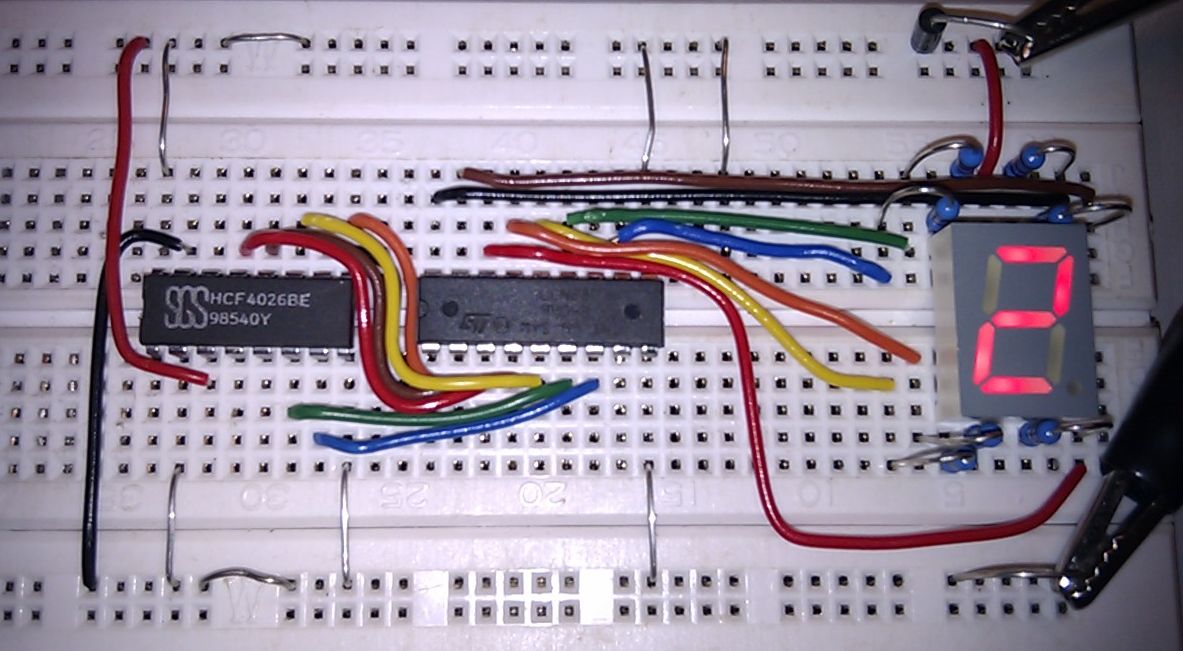

4026 Counter and Seven Segment Decoder

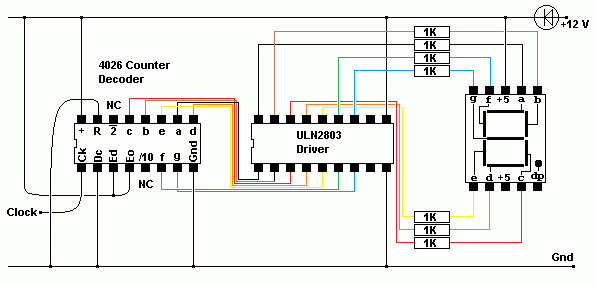

This circuit uses a Darlington Driver chip to increase the low counter output current up to 10mA for bright segments on the display.
