Picaxe Input Switches


This is the AQA version closing after June 2019. Visit the the version for Eduqas instead.

To gain access to revision questions, please sign up and log in.

A2

Interfacing Switches Safely

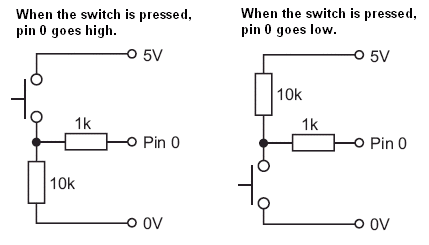

These interface circuits pull the input pin low or high.

If you have made an error configuring the TRIS registers and you connect this interface to an output pin, there will be no damage because the 1k resistor limits the current to a safe level.

It's not safe simply to connect I/O pins to the 0 V or 5 V line.

How to wire up input switches ...

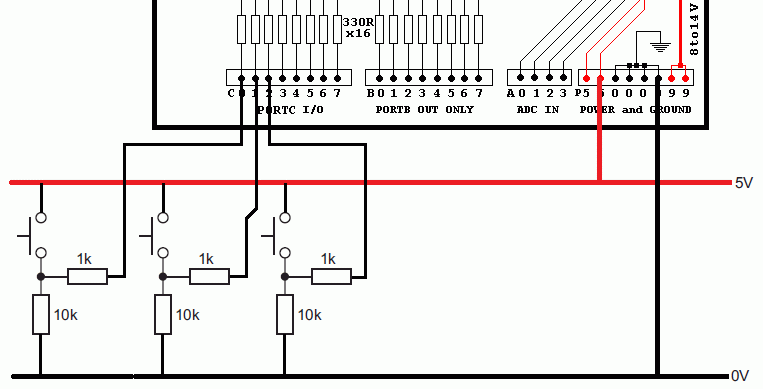

Here is an example
