Picaxe Traffic Lights


This is the AQA version closing after June 2019. Visit the the version for Eduqas instead.

To gain access to revision questions, please sign up and log in.

A2

The LED safety resistors are wired onto the ENSFC Picaxe board.

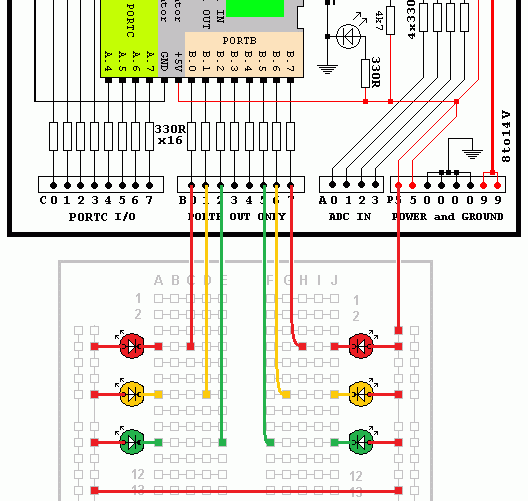

PX Traffic.gif

; ===================================
;   TO LIGHT A LED, ZERO IS NEEDED
;   TIMING IS NOT REALISTIC
; ===================================
start:                  ; RAGxxGAR
    movw    0x7B        ; 01111011 = 0x7B
    movwr   portb
    call    wait1000ms  ; RAGxxGAR
    movw    0x55        ; ???????? = 0x?? Work it out!
    movwr   portb
    call    wait1000ms  ; RAGxxGAR
    movw    0xAA        ; ???????? = 0x?? Work it out!
    movwr   portb
    call    wait1000ms  ; RAGxxGAR
    movw    0x55        ; ???????? = 0x?? Work it out!
    movwr   portb
    call    wait1000ms
    jmp     start

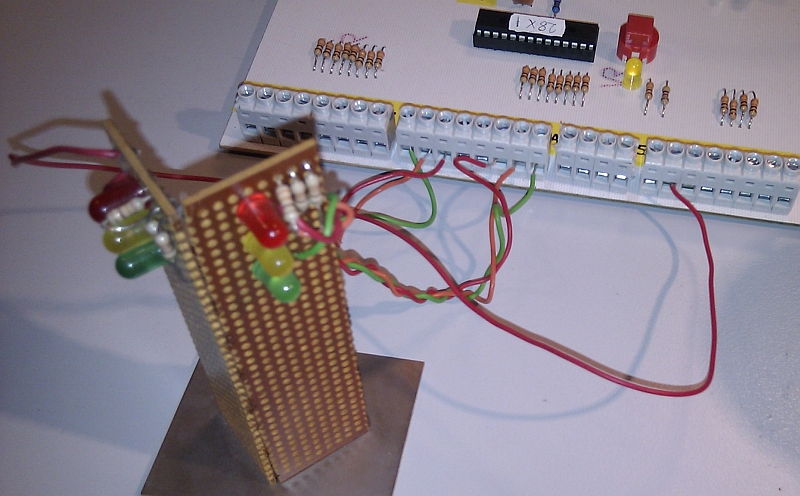

Traffic Lights Module
